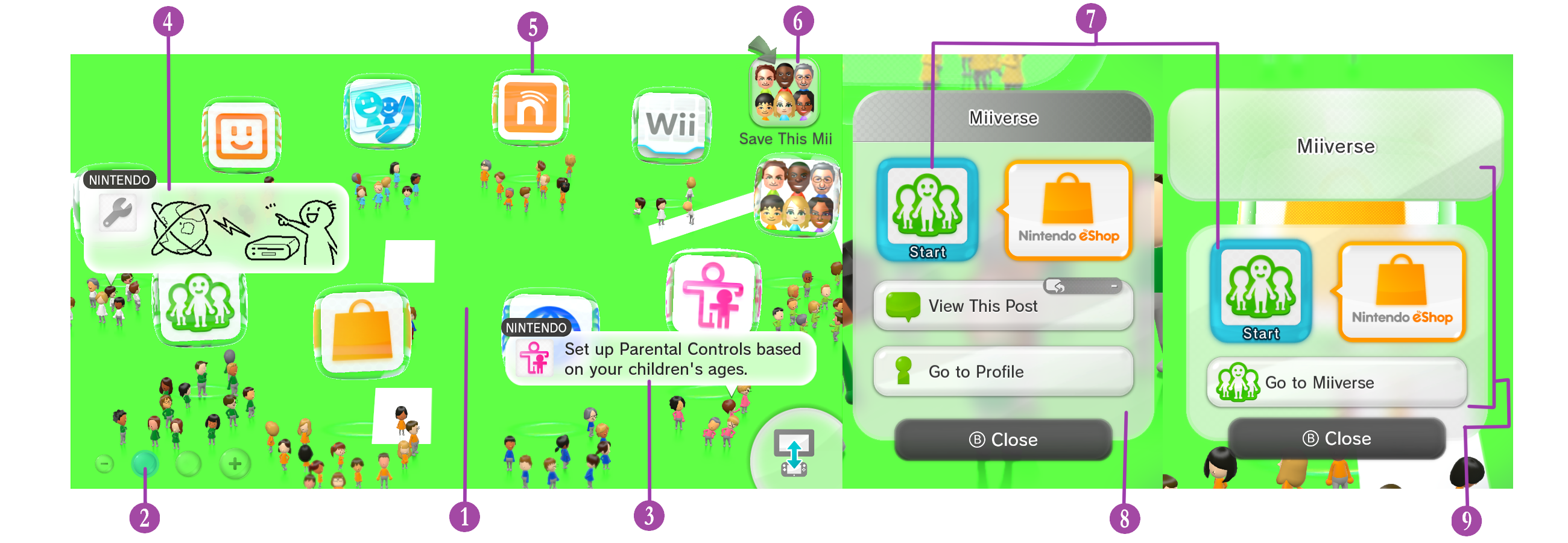

Wara Wara Plaza


1. Floor

Image title

Men2.pack > Model > LoungeFloor.szs

This is where the floor model is located

Floor Guide

2. Button Scale

Image title

Men.pack > Layout > BtnLoungeScale_00.szs

Glow

Go to Men.pack > Layout > BtnLoungeScale_00.szs > BtnLoungeScale_00.bflyt

Change the color of the material P_StaleIconGlow_00

Color

Go to Men.pack > Layout > BtnLoungeScale_00.szs > BtnLoungeScale_00.bflyt

  • In Animation Hierarchy open BtnLoungeScale_00_Active.bflan
  • Go to Animation Info > PF_ScaleDotIndirect_00 > MaterialColor

Change the Key Frame 1 value of

  • BlackColorRed
  • BlackColorGreen
  • BlackColorBlue

and

  • WhiteColorRed
  • WhiteColorGreen
  • WhiteColorBlue
What values do I use?

You can get your color in Hexadecimal values

For example Pink (#FF8DA1)

Then convert the RGB values to Decimal

  • FF = 255 for Red
  • 8D = 141 for Green
  • A1 = 161 for Blue
There's no Key Frame 1 in BlackColorRed

Right click BlackColorRed and select Add Keyframe

Change the Frame value to 8

Once you changed the values close the current window and open BtnLoungeScale_00_Inactive.bflan

  • Go to Animation Info > PF_ScaleDotIndirect_00 > MaterialColor
  • Right click BlackColorRed and select Add Keyframe
  • Change the Key Frame 1 Frame to 8
  • Change the Key Frame 1 Value to 0

Now change the Key Frame 0 value of

  • BlackColorRed
  • BlackColorGreen
  • BlackColorBlue

and

  • WhiteColorRed
  • WhiteColorGreen
  • WhiteColorBlue

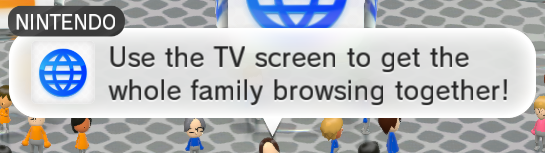

3. Speech Balloon

Image title

Men2.pack > Layout > SpeechBalloon.szs

Balloon

You can change the Color of this by changing the materials:

  • W_BalloonC
  • W_BalloonLT
  • P_Tip

To change or remove the transparency also change these materials:

  • WF_BalloonC
  • WF_BalloonLT

If you want to change the Color of the title change:

  • W_NameBaseC
  • W_NameBaseLT
Text

Go to RootPane > N_Trans > N_Scale

To change the color of the title of the Balloon

  • Go to N_InBalloon > T_Name
  • Go to Text Pane
  • In Font change the color

To change the color of the text of the Balloon

  • Click T_Balloon
  • Go to Text Pane
  • In Font change the color

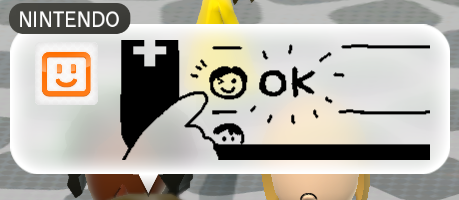

4. Speech Balloon Drawing

Image title

Men2.pack > Layout > SpeechBalloonIllust.szs

Balloon

You can change the Color of this by changing the materials:

  • W_BalloonC
  • W_BalloonLT
  • P_Tip

To change or remove the transparency also change these materials:

  • WF_BalloonC
  • WF_BalloonLT

If you want to change the Color of the title change:

  • W_NameBaseC
  • W_NameBaseLT
Text

Go to RootPane > N_Trans > N_Scale > N_InBalloon

To change the color of the title of the Balloon

  • Go to T_Name
  • Go to Text Pane
  • In Font change the color

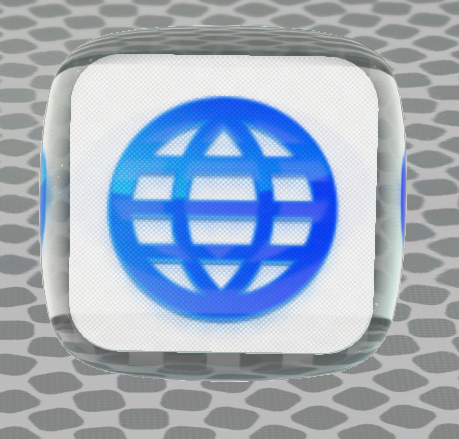

5. App Floating Icon

Image title

Men2.pack > Model > Cube00.szs

6. "Save This Mii"

Image title

Men2.pack > Layout > BtnMiiWindow_02.szs

You can change the Color / Texture of this by doing changes to the materials inside of the bflyt file

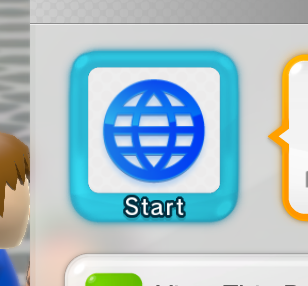

7. App Launch

Image title

Men2.pack > Layout > CommandLauncherIcon.szs

You can change the Color of this by changing the material ActiveFrame_01

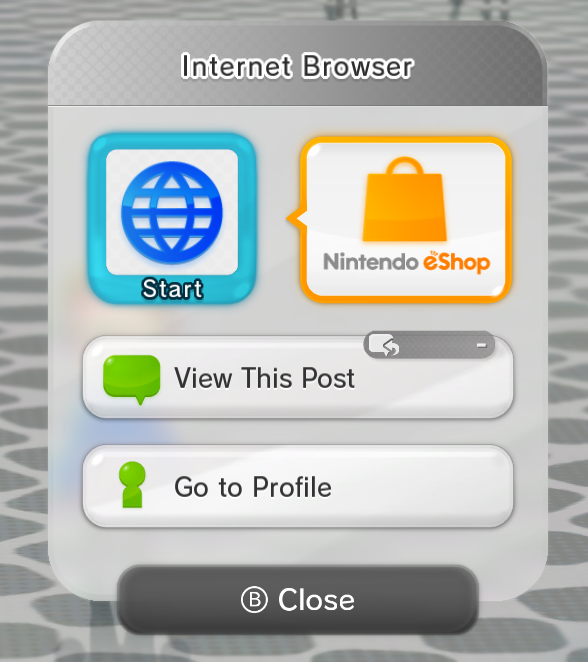

8. Post Info

Image title

Men2.pack > Layout > CommandPosting.szs

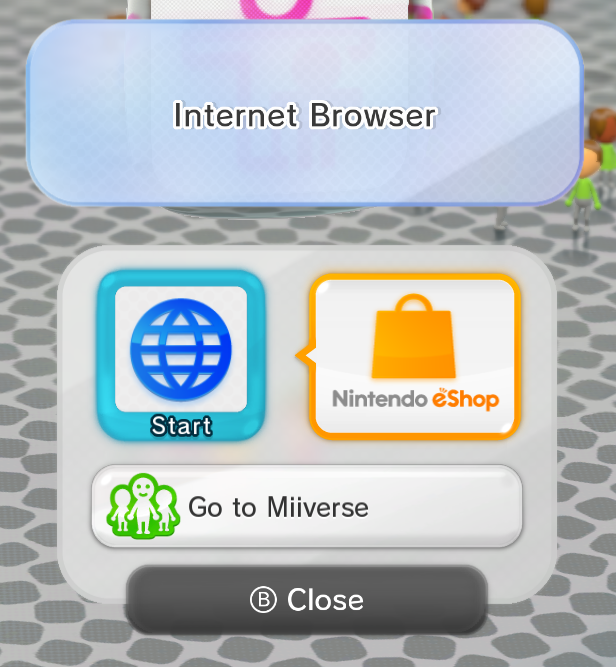

9. App Info

Image title

Men2.pack > Layout > CommandCube.szs

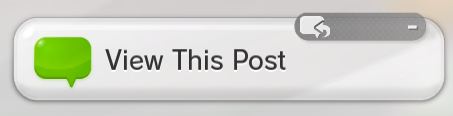

10. Button

Image title

Men.pack > Layout > BtnLoungeWindow_00.szs

You can change the Color of this by changing the materials

  • W_Shadow_01LT
  • W_Shadow_01RT
  • W_Shadow_01LB
  • W_Shadow_01RB

11. Close Button

Image title

Men.pack > Layout > BtnLoungeWindowClose.szs

You can change the Color of this by changing the materials

  • W_BtnDialogCloseC
  • W_BtnDialogCloseLT
